12.8V 100aH Battery 12 Years Warranty 6000 Cycles Life Home Battery
- Packaging:
- STANDARD EPORT PLASTIC BAG, CARTON, PALLET
- Supply Ability:
- 10000 Piece/Pieces per Month
- Port:
- Shenzhen
Product Description
SPECIFICATIONS FOR 12.8V 100Ah Lithium Battery
Item | 12v 100ah LiFePO4 Battery Pack | |||
Brand | TAICO | |||
Type | Lithium Iron Phosphate | |||
Part No.: | ||||
Voltage Nominal | 12.8V (Customized 3.2V 12V 24V 36V 48V) | |||
Capacity Nominal | 100AH | |||
Norrmal Charge Current | 50A Or Customized | |||
Weight | / | |||
Dimension | 329*172*243mm Or Customized | |||
Operating Temperature Range | Charge:0 to +60°C | |||
Discharge: -20 to +60℃ | ||||
Life Cycle | More than 6000times | |||
Package | ABS/Metal Case Or Customized | |||
Customized | Shell, Size, Weight, Color, Label, Current, Technology,etc can be customized |
Electric Propelling
♦ E-car, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair, E-sweeper, Floor cleaner,
♦ Intellectual Robots
♦ Power tools: electric drills, toys

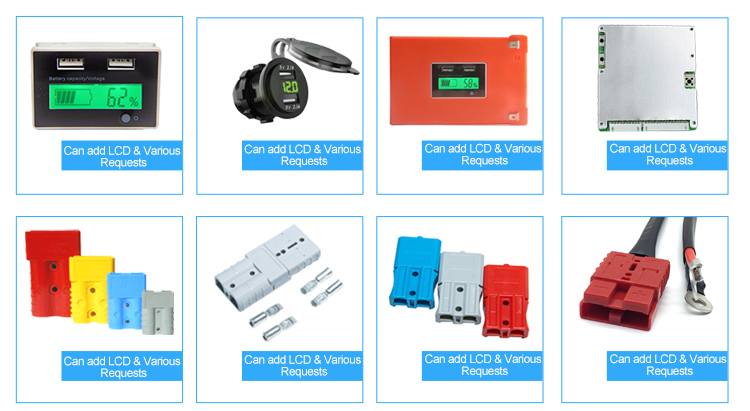

Customized Battery Size and Material:
Factory direct light weight deep cycle lithium ion lifepo4 12v 100ah polymer battery akku
Features:
12.8V 100Ah/120ah/125ah/150ah/180ah/200ah Battery Pack – LiFePo4
High lifespan: 2000 cycles @ 100% DOD, 80% capacity remain
Deep discharge allowed up to 100%
BMS Protection ( no thermal runaway, no fire or explosion risks)
Excellent temperature robustness (-20 °C up to +60°C)
Constant power during discharge( very low internal resistance)
Very low Peukert's losses( energy efficiency>96%)
Very low self-discharge(<2% per month)
No memory effect
MODEL | Size L X W X T(mm) | Weight (KG) |
12V 5AH | 90*70*101 | 1 |
12V 10AH | 151*65*94 | 1.75 |
12V 20AH | 187*77*167 | 2.7 |
12V 40AH | 195*130*175 | 5.5 |
12V 60AH | 239*132*205 | 7.5 |
12V 80AH | 329*172*243 | 9.8 |
12V 100AH | 329*172*243 | 13 |
12V 120AH | 406*174*232 | 16 |
12V 150AH | 486*170*240 | 19 |
12V 180AH | 522*240*244 | 22 |
12V 200AH | 522*240*244 | 24 |
12v 300AH | 560*110*280 | 28 |
Operation Notice.
♦ Do not assemble or store in high temperature (over 60 °C) environment
♦ Do not short-circuit the battery directly.
♦ Do not use acid corrosion of the battery casing.
♦ Do not throw it into water or put in wet environment.
♦ Do not knock, impact the battery.
♦ Do not anatomy cell or change the internal structure of the battery.
